IPC solution based on Q03P and SOC integration
Program Overview:
This solution is based on a main control platform and the SOI Q03P sensor, and is designed for use in smart surveillance IP cameras suitable for both outdoor and indoor environments. It features a 2304x1296 resolution at 30 frames per second and supports HDR. As a 3-megapixel surveillance camera, it utilizes ISP image tuning technology to enhance image quality and color reproduction. Combined with a dedicated CMOS sensor and post-processing, it achieves superior light sensitivity and lower noise levels.
Product Overview:
SOI Photonics is a company specializing in the development and sales of CMOS image sensors (CIS). The company boasts an outstanding design team and collaborates with professional wafer foundries, offering system integration capabilities. Additionally, SOI Photonics has established partnerships with testing and packaging vendors. The company provides low-cost, high-performance, and diversified products to meet the needs of the market and its customers, along with fast local customer service to help clients maintain a competitive edge in production efficiency and time.
The JX-Q03P is a high-performance 3.0MP BSI CMOS image sensor, designed and manufactured using SOI's 2.0μm pixel technology. The JX-Q03P features a 2304 x 1296 active pixel sensor (APS) array, equipped with an on-chip 10-bit ADC, programmable gain control (PGA), and correlated double sampling (CDS) capabilities, which significantly reduce fixed pattern noise (FPN). This sensor also offers a variety of standard programmable and automatic functions. It supports both industry-standard DVP parallel interface and MIPI CSI2 dual data lane serial interface. The device can be accessed by an external controller via a standard serial interface. The sensor is available in wafer-level CSP packaging.
Effect Display
The following are sample images taken under different lighting intensities and infrared conditions:
100 lux
50 lux
30 lux:
10 lux
1 lux:
0.2 lux:
Infrared 850nm:
Infrared 940nm:
Scenario Application Diagram

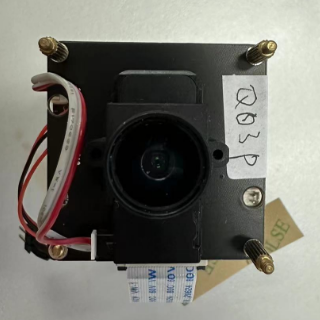

Product Actual Image

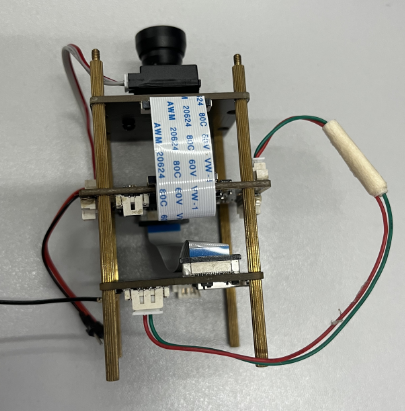

Display board photo

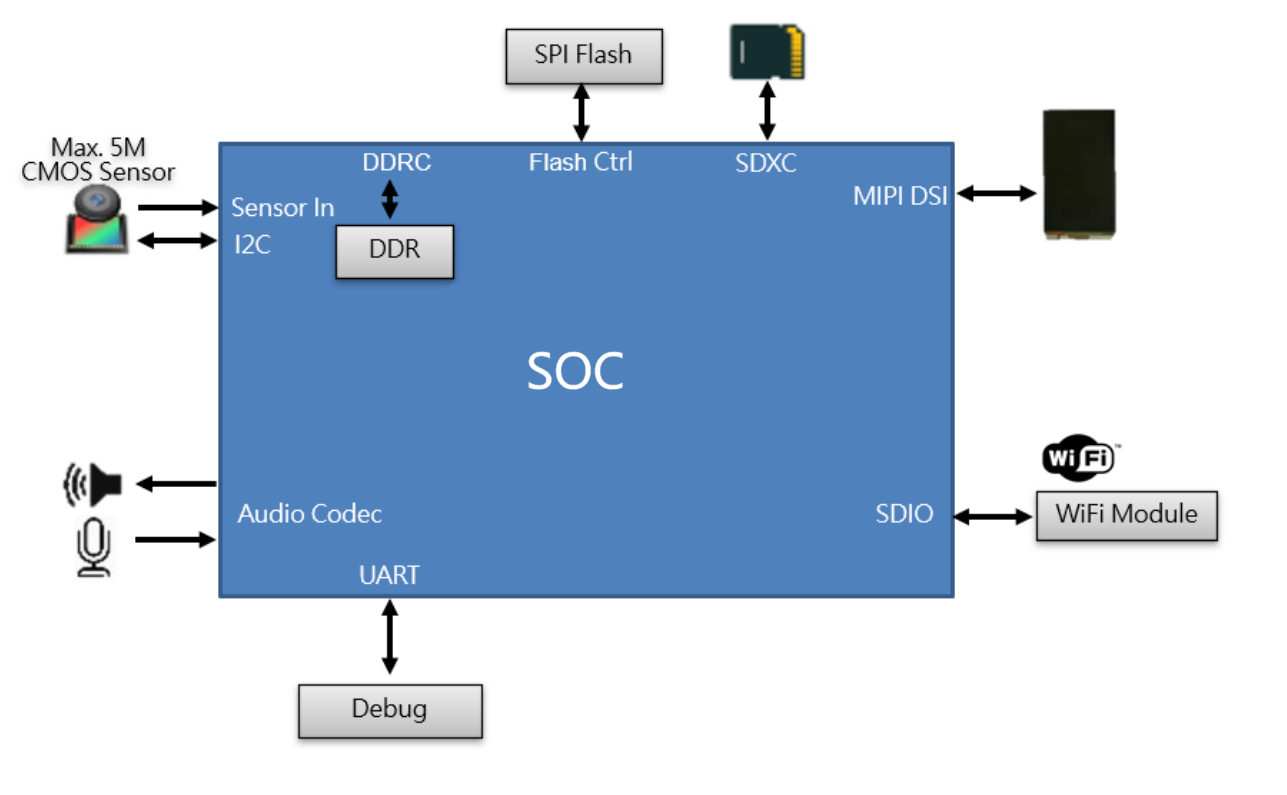

Solution Block Diagram
Core Technology Advantages
1. Sensor size: 1/2.7 inch;
2. Effective pixels: 2312H x 1296V;
3. Pixel size: 2.5 x 2.5 micrometers;
4. CRA: 17.5°;
5. Output format: 10-bit raw RGB data.
6. Dynamic range: 76dB;
7. Dark current: 3.0 mV/sec @ 45°C
Plan Specifications
1. sensor_soi_Q03P specifications:
3.0MP CMOS image sensor;
Resolution: 2304*1296; 10-bit RAW RGB;
DVP parallel interface and MIPI CSI2 dual data lane serial interface.
