With the surge in demand for digital displays, we are seeing an increasing number of terminal applications integrated into daily life, such as electronic photo frames and digital signage. In the realm of IoT MCU development, achieving precision control over low-power consumption while maintaining high-performance image processing and connectivity has become a critical objective. This balance is a core competency that determines a product's deployment flexibility and long-term operational costs. This article introduces a suitable solution for 10-inch, 13.3-inch, or larger e-paper displays (EPD) that combines high-performance processing, rapid networking, and intelligent power management using the highly integrated FN7933CTA1 module and the SAC-EPD7933 Turnkey Board (TKB).

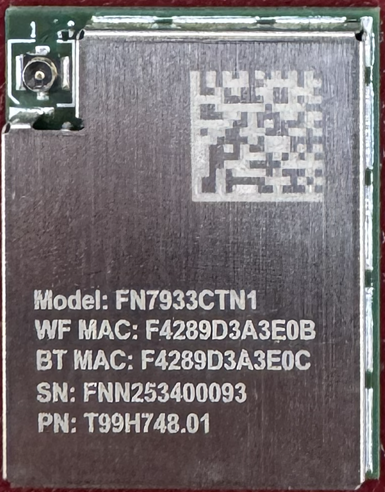

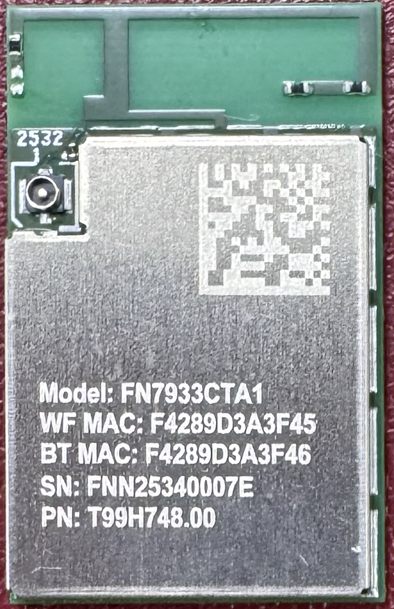

Core Architecture: FN7933CTA1 Module

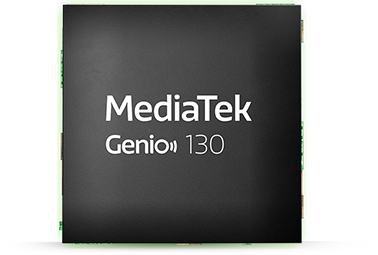

At the heart of this solution is the FN7933CTA1 module, which integrates the MediaTek MT7933CT System-on-Chip (SoC). It features the following technical characteristics:
- Processor: Powered by an ARM Cortex-M33 application processor with a clock speed of up to 300 MHz.
- Memory Allocation: Includes 1 MB of internal SRAM and 8 MB of UHS PSRAM dedicated to application use, along with 96 KB of TCM and Cache memory.
- External Storage: Equipped with 32 MB of SPI-NOR Flash supporting Execute-In-Place (XIP) to optimize code execution efficiency.
- Communication Subsystem: Integrates a dual-band Wi-Fi 6 (802.11ax) 2.4GHz / 5GHz and Bluetooth 5.2/5.1 LE dual-mode subsystem.
- Audio Digital Signal Processor: Features a Cadence® Tensilica® HiFi4 DSP that offers 3 ADC and 2 DAC channels, plus dedicated SRAM.
- Hardware Encryption: Supports a robust hardware encryption engine including AES, DES/3DES, SHA, ECC, and TRNG.
- Power Management: Achieves stringent low-power requirements through multiple supported power modes.
- Peripheral Interface: Offers a rich set of I/Os including USB 2.0, SDIO, SPI Master/Slave、I2C Master, I2S, UART, AUXADC, PWM, and up to 47 multiplexed GPIOs.
- Development Resources: Supported by a FreeRTOS-based SDK and various reference projects to significantly accelerate the development cycle.
Turnkey Board Selection: TKB-1 and TKB-2
To meet diverse display requirements across different application scenarios, this solution offers two hardware configurations tailored for Spectra 6 EPD:

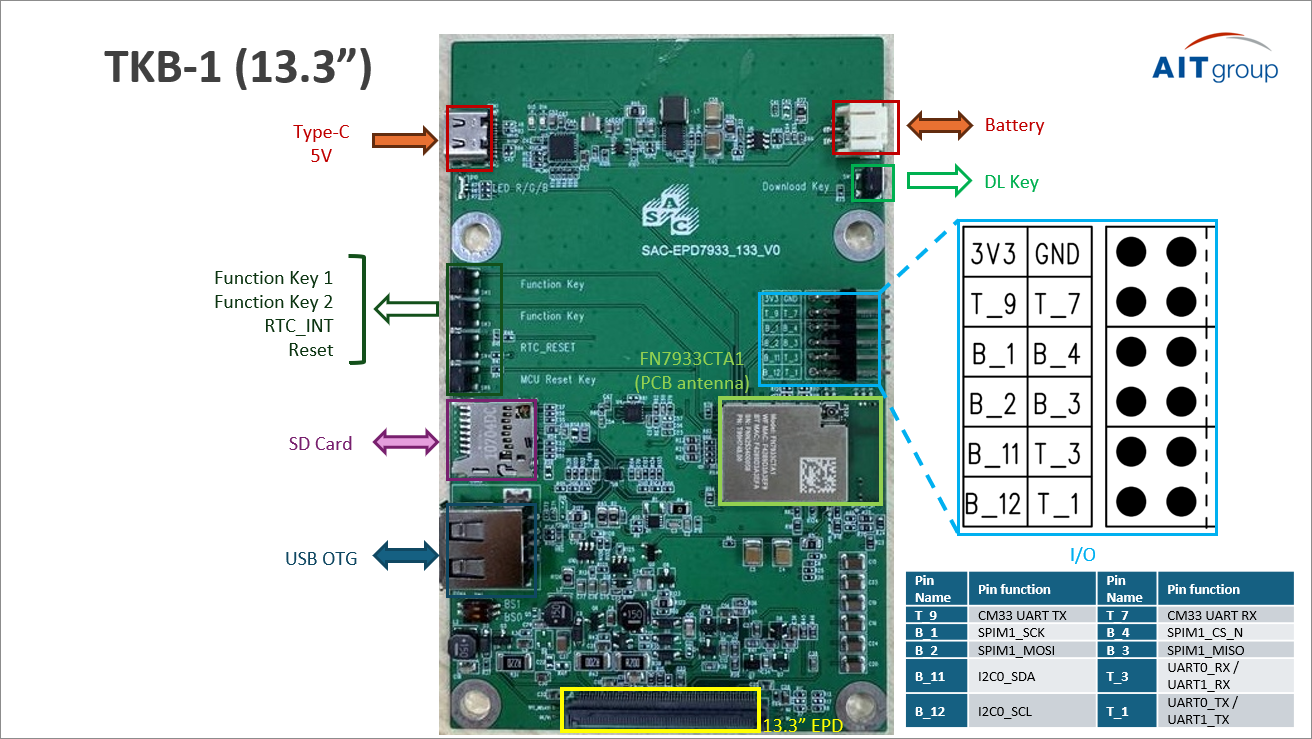

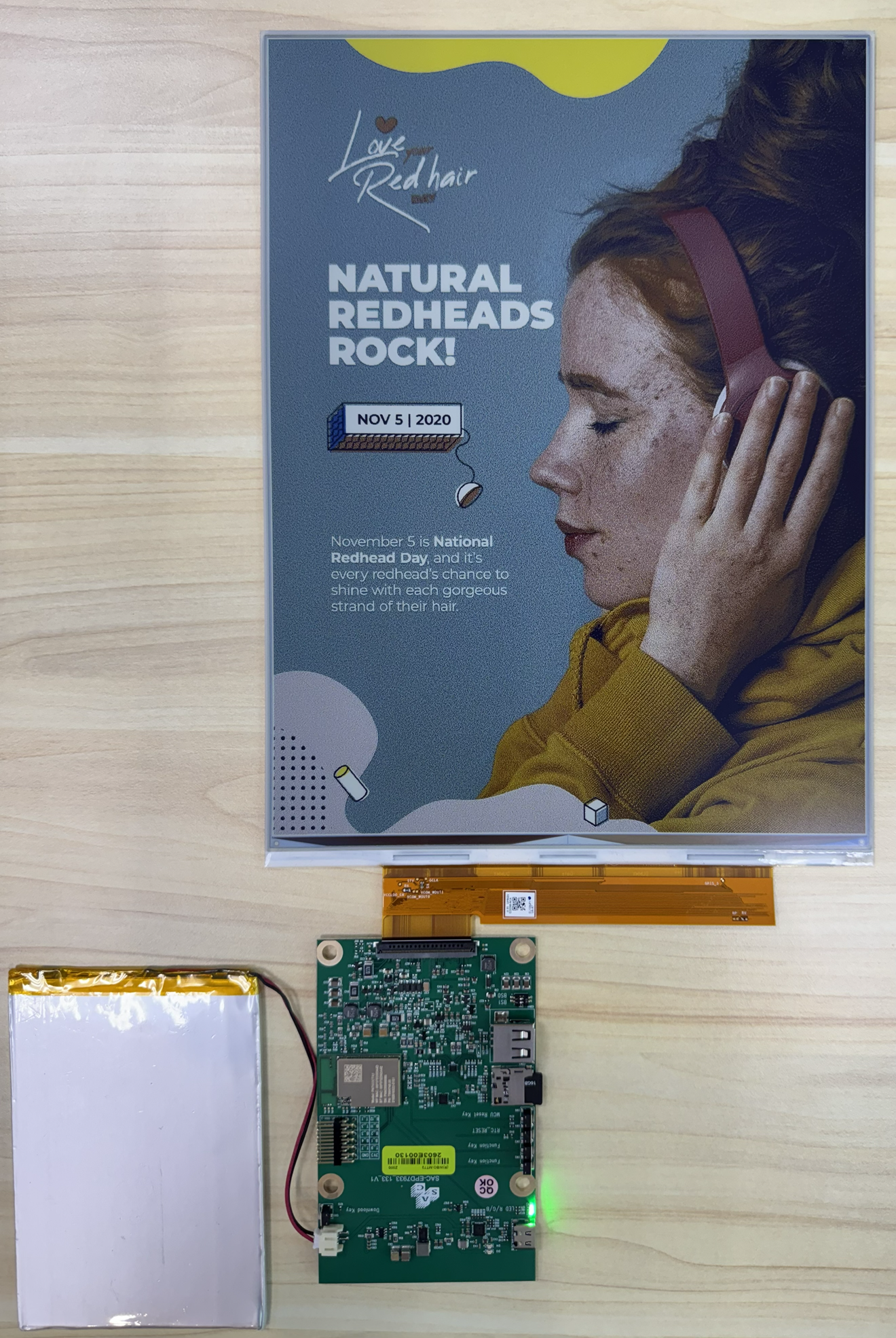

TKB-1 (SAC-EPD7933_133): Specifically designed for 13.3-inch EPD. It also features a USB 2.0 Host interface capable of driving even larger size of EPDs for various large-scale digital signage applications.

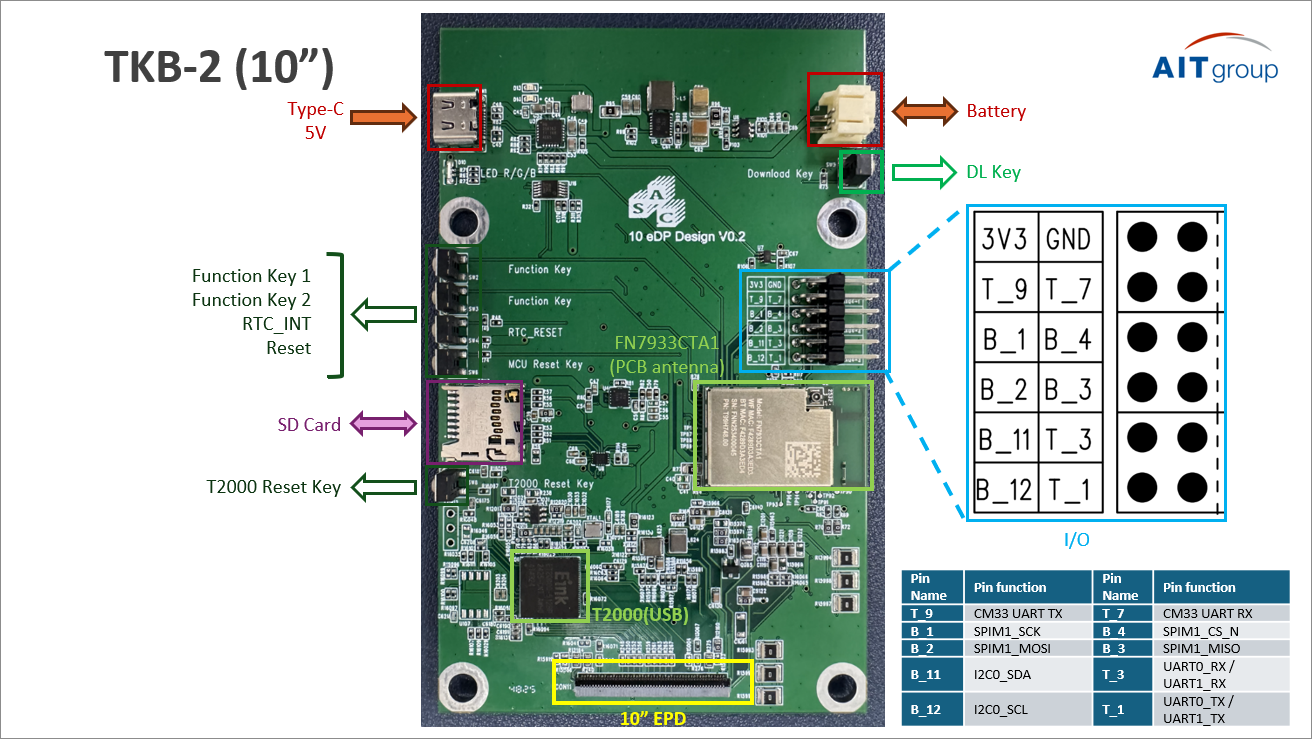

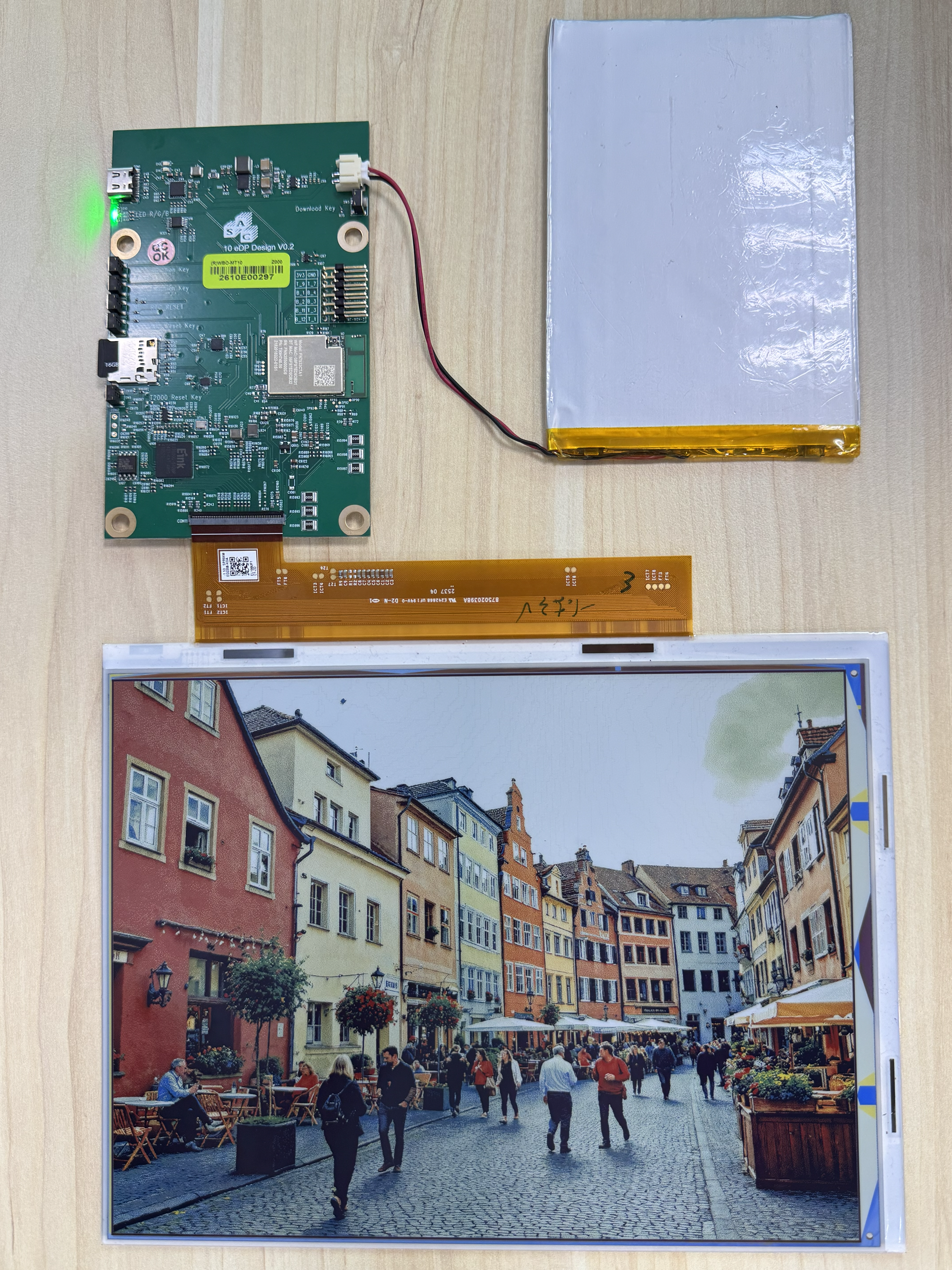

TKB-2 (SAC-EPD7933_10): Optimized for 10-inch EPD with a highly compact form factor. It integrates an onboard T2000 hardware TCON via the USB interface and a G2914 Power Management IC (PMIC).
Key Technical Implementations
The implementation of the SAC-EPD7933 Turnkey Board incorporates several critical technologies that enhance system reliability and practical utility:
Advanced Power Management and Power Design
To meet the long-standby requirements of EPD devices, the system implements a deep Sleep Management mechanism coupled with RTC control and wakeup functions. The hardware architecture natively supports battery power and charging via a Type-C interface, ensuring the device remains in an ultra-low-power state during non-refresh periods.
Seamless Connectivity and Provisioning Logic
Leveraging the dual-mode communication of the MT7933CT, the system provides high-speed Wi-Fi 6 connectivity and supports Wi-Fi Smart Connection via BLE. This allows engineers to rapidly configure Wi-Fi credentials during initial deployment via Bluetooth Low Energy, effectively solving the provisioning challenges for IoT devices lacking traditional input interfaces.
Versatile EPD Display Modes
The system is designed with a flexible image loading logic:
- Cloud Mode: Downloads image data directly via Wi-Fi 6 for display refresh.
- SD Card Mode: Supports loading images from the onboard SD card (Mass Storage support), ideal for offline displays or as a fallback in network-restricted environments.
- Dynamic adjustment: Users can define adjustable display refresh intervals to balance real-time updates with overall power consumption.
System Configuration and Extensibility
For complex system configurations, the TKB supports parameter storage in SD Card or NVDM. It also provides a Command Line Interface(CLI), enabling developers to operate and modify system configurations directly via the UART console. Furthermore, TKB-1 (SAC-EPD7933_133) includes a USB 2.0 Host port that can control multiple TCON modules via a USB Hub.
* TKB-2 (SAC-EPD7933_10) is pre-configured to connect the T2000 TCON via its USB Host port.

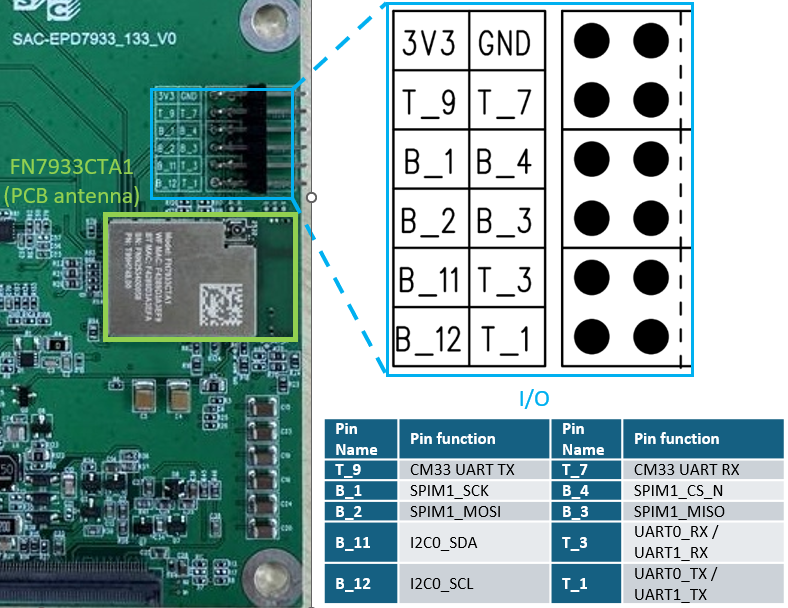

Expansion Interface Specifications:
The TKB provides an additional 12-pin expansion header (I/O pin definition) for extended development:- Power: 3V3, GND.
- Debug Interface: FN7933CTA1 debugging (CM33_UART).
General Interfaces: UART, SPI Master, I2C.
HMI and Interaction Logic
The TKB is equipped with flexible function keys and a LED status indicator:
- Function Key 1: Used for switching between Cloud/SD Card modes and initiating the Wi-Fi Smart Connection provisioning process.
- Function Key 2: Manually triggers an EPD screen refresh, facilitating visual confirmation during onsite installation.
- RTC Reset: Acts as an external wakeup source to manually wake the TKB from RTC deep-sleep mode.
- LED Indicators: Utilizes various lighting patterns to provide visual status updates on current EPD display modes, function activation (e.g., Wi-Fi connectivity, Wi-Fi Smart Connection), and error diagnostic alerts.
Conclusion
The SAC-EPD7933 series Turnkey Board, empowered by the highly integrated FN7933CTA1 module, provides a high-efficiency, low-power, and high-speed connectivity platform for electronic photo frames and digital signage. With its mature hardware architecture and robust software functionality, this solution is undoubtedly the optimal choice for development teams seeking to accelerate Time-to-Market.
