WPG India develop 350W E-Cycle BLDC Motor Controller powered with Infineon XMC1302 Micro-Controller.
Solution provides multi-voltage and current sensing with configurable protection limits. It is fully compatible for drop-in replacement with existing solutions. Excellent thermal and EMI performance in compact form factor and “Made in India”with automotive-grade reliability.
►Scenario application diagram

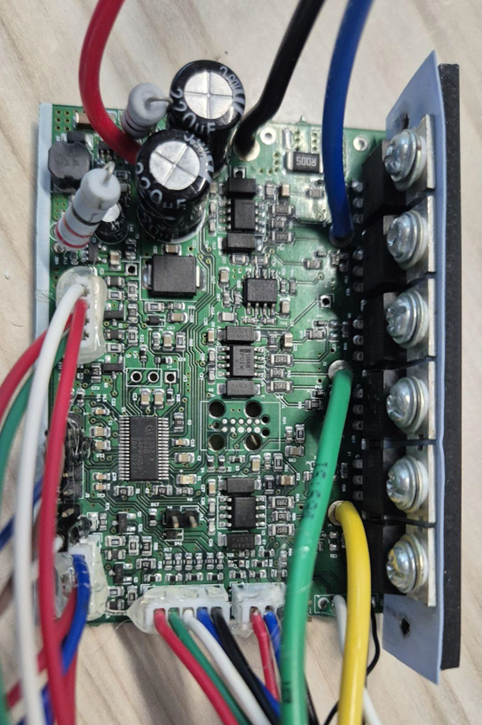

►Display board photo

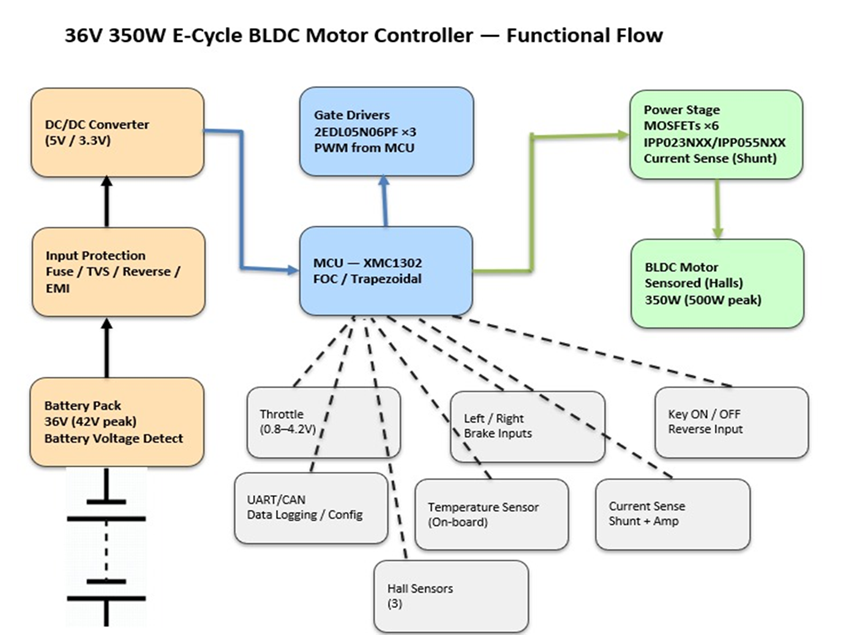

►Scheme Block Diagram
►Technological advantages
TRAPEZOIDAL CONTROL, FOC. Intelligent, cost-effective BLDC controller for e-cycles and other low-power applications.
►Scheme specifications
1. Rated Power: 350W 2. Peak Power : 500W 3. Rated Voltage: 36V 4. Peak Voltage: 42V 5. Rated Current: 10A 6. Operating Temperature: 0 - 55℃ 7. On-Board Temperature Sensors: 1 8. Sensor type: Hall sensor 9. Throttle voltage: 0.8 - 4.2V 10. Under-voltage protection: 30V
