WPG India release 12V/24V 250W BLDC Sensor-less Motor Controller for Vehicle's Pump application.

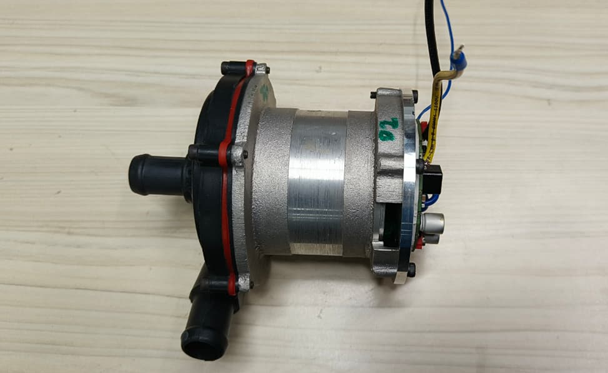

►Scenario application diagram

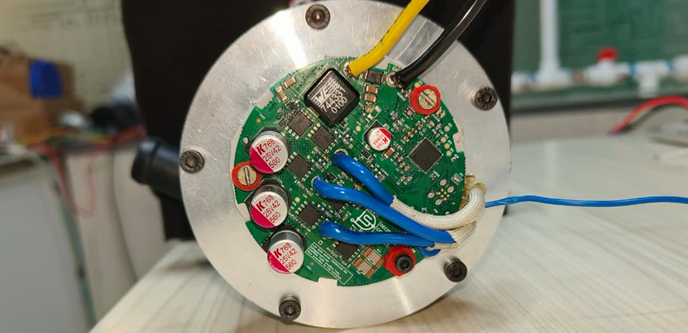

►Product entity diagram

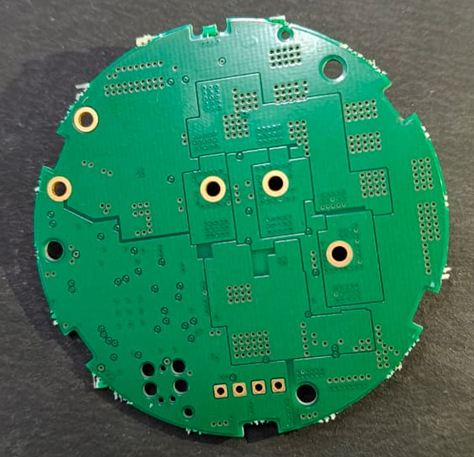

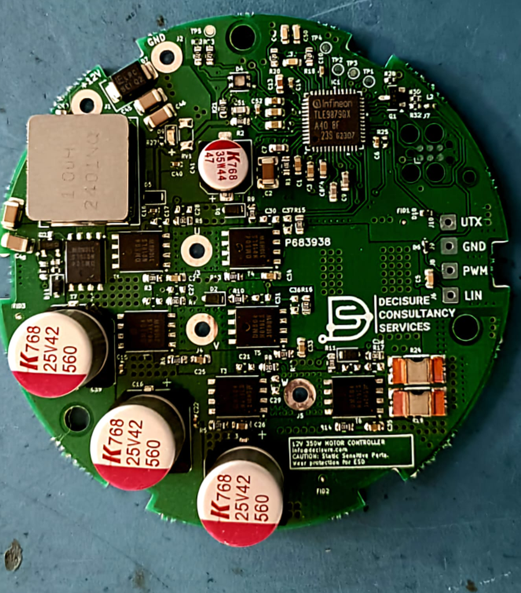

►Display board photo

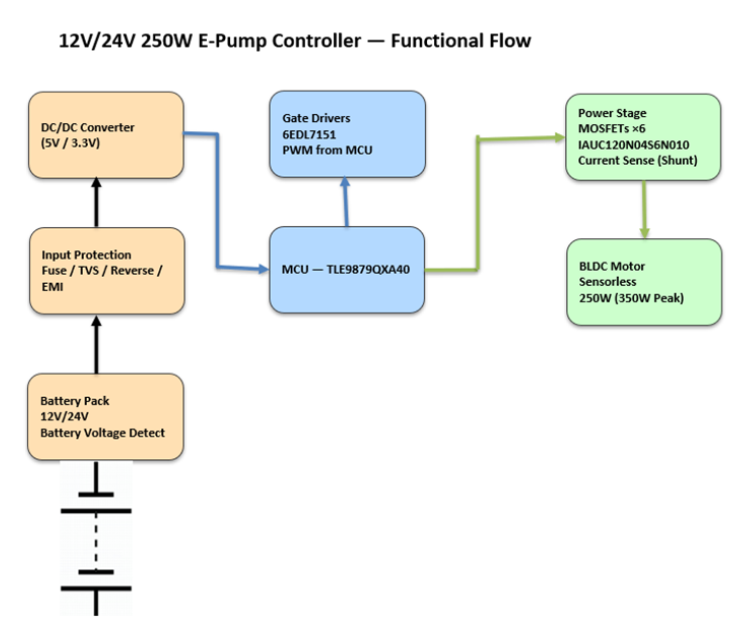

►Scheme Block Diagram
►Technological advantages
Infineon MOTIX™ Motor Controller
►Scheme specifications
1) Sensorless BLDC control with CAN, UART, and PWM input 2) Automotive compliant EMI filter design 3) All-SMD layout for back-housing mounting 4) High performance at low speed & low load 5) customizable flow and speed control
